With its direct-coupled, high-torque digging chain motor and Tier 4 engine, the RT45 is the ideal machine for digging a 4- to 5-foot (1.2- to 1.5-m) trench.
The MT12 microtrencher slices through asphalt to create the ideal trench for fiber-optic cable installation.
Angle of departure: 19°
Trench depth: 6.5 - 12.5 in | 165 - 318 mm
Blade diameter: 34 in | 864 mm
Trench width: 0.5 - 1.5 in | 13 - 38 mm
Attachment weight: 1,400 lb | 636 kg
Engineered for serious trenching, the H313 delivers consistent cutting performance.
Angle of departure: 17°
Trench depth, max: 63 in | 1.6 m
Trench width, min to max: 6 - 12 in | 150 - 305 mm
Attachment weight: 610 lb | 277 kg
Engineered for serious trenching, the H314 delivers consistent cutting performance.
Angle of departure: 35°
Trench depth, max: 52 in 1.3 m
Blade diameter: 34 in | 864 mm
Trench width, min to max:
Center: 6 - 12 in | 150 - 305 mm
Offset: 6 - 8 in | 150 - 200 mm
Attachment weight: 570 lb | 260 kg
Bury cable fast and clean with the H331 Vibratory Plow—no mess, no slowdowns.
Angle of departure: 22°
Cover depth, feed blade, max: 24 in | 610 mm
Transport length, plow w/ blade: 169 in | 4.3 m
Get the reach, strength, and control of a backhoe—right from your ride-on.
Backhoe length: 60 in | 1.5 m
Digging depth, max: 72 in | 1.8 m
Reach from swing pivot: 102 in | 2.6 m
Bucket width: 12 in | 305 mm
Bucket capacity: 1.1 ft³ | .03 m³
Bucket weight: 1,125 lb | 511 kg
Swing arc: 160°
When the job demands serious trenching performance, this heavy-duty H342 Saw delivers.
Angle of departure: 14°
Trench depth, max: 18 in | 165 - 455 mm
Overall length, transport: 162 in | 4.1 m
Number of teeth: 36
Attachment Weight
2.5 in segment: 1,550 lb | 700 kg
3.5 in segment: 1,610 lb | 730 kg
5 in segment: 1,660 lb | 755 kg
The ultimate multitasker—cut your setup time and boost productivity with a trencher and plow combo built for more.
Angle of departure: 33°
Trench depth, max: 42 in | 1.1 m
Trench width, min to max: 6 - 8 in | 150 - 200 mm
Plow Dimensions
Angle of departure: 26°
Cover depth: 24 in | 610 mm
General
Attachment weight: 1,500 lb | 680 kg
Powered by a 72-hp Yanmar® Tier 4 Stage V-Compliant diesel engine, the RT70 is built for heavy-duty trenching, plowing and microtrenching jobs with tight fits and even tighter schedules.
The MT12 microtrencher slices through asphalt to create the ideal trench for fiber-optic cable installation.
Angle of departure: 19°
Trench depth: 6.5 - 12.5 in | 165 - 318 mm
Blade diameter: 34 in | 864 mm
Trench width: 0.5 - 1.5 in | 13 - 38 mm
Attachment weight: 1,400 lb | 636 kg
The MT16 microtrencher cleanly cuts through asphalt or concrete, helping utility contractors install fiber optic cable with ease.
Angle of departure: 20°
Trench depth: 0 - 16 in | 0 - 406 mm
Blade diameter: 43 in | 1092 mm
Trench width: 0.5 - 2 in | 13 - 51 mm
Attachment weight: 2,015 lb | 914 kg
Reduce your cost-per-foot with the Ditch Witch® MT26 Microtrencher, giving you a clean, smooth trench with just one pass.
Angle of departure: 17.2°
Trench depth: 0 - 26 in | 0 - 660 mm
Blade diameter: 63 in | 1600 mm
Trench width: 1.5 - 3 in | 38 - 76 mm
Attachment weight: 3,567 lb | 1618 kg
Get the reach, strength, and control of a backhoe—right from your ride-on.
Digging depth, max:
Tracks: 89.2 in | 2266 mm
Tires: 93 in | 2362 mm
Bucket width: 12 - 24 in | 305 - 609 mm
Built to handle the toughest jobs, the Reel Carrier attachment keeps your workflow rolling.
Engineered for serious trenching, the CT70 delivers consistent cutting performance.
Digging depth, max:
Tracks: 89.2 in | 2266 mm
Tires: 93 in | 2362 mm
Trench width, max: 12 in | 305 - 609 mm
Engineered for serious trenching, the CT70 delivers consistent cutting performance.
Digging depth, max:
Tracks: 59.5 in | 1521 mm
Tires: 63.8 in | 1621 mm
Trench width, max: 12 in | 305 mm
Bury cable fast and clean with the VP70 Vibratory Plow—no mess, no slowdowns.
Cover depth, max (adjustable): 36 in | 914 mm
This versatile machine is designed for heavy-duty trenching and vibratory plowing; backhoe and reel carrier attachments are also available.
The MT12 microtrencher slices through asphalt to create the ideal trench for fiber-optic cable installation.
Angle of departure: 19°
Trench depth: 6.5 - 12.5 in | 165 - 318 mm
Blade diameter: 34 in | 864 mm
Trench width: 0.5 - 1.5 in | 13 - 38 mm
Attachment weight: 1,400 lb | 636 kg
The MT16 microtrencher cleanly cuts through asphalt or concrete, helping utility contractors install fiber optic cable with ease.
Angle of departure: 20°
Trench depth: 0 - 16 in | 0 - 406 mm
Blade diameter: 43 in | 1092 mm
Trench width: 0.5 - 2 in | 13 - 51 mm
Attachment weight: 2,015 lb | 914 kg
Reduce your cost-per-foot with the Ditch Witch® MT26 Microtrencher, giving you a clean, smooth trench with just one pass.
Angle of departure: 17.2°
Trench depth: 0 - 26 in | 0 - 660 mm
Blade diameter: 63 in | 1600 mm
Trench width: 1.5 - 3 in | 38 - 76 mm
Attachment weight: 3,567 lb | 1618 kg
The backhoe built for heavy-duty performance in the toughest jobsite conditions.
Built to handle the toughest jobs, the RC80 Reel Carrier attachment keeps your workflow rolling.
Reel diameter, max: 84 in | 2.1 m
Internal width: 54 in | 1.2 m
Attachment weight: 1,040 lb | 472 kg
Engineered for serious trenching, the H810 trencher delivers consistent cutting performance.
Angle of departure: 17.2°
Trench depth: 0 - 26 in | 0 - 660 mm
Blade diameter: 63 in | 1600 mm
Trench width: 1.5 - 3 in | 38 - 76 mm
Attachment weight: 3,567 lb | 1618 kg
Engineered for serious trenching, the H813 trencher delivers consistent cutting performance.
Angle of departure: 26.6°
Trench depth, max: 58.4 in | 1.5 m
Trench width, max: 12 in | 305 mm
Transport length: 93.5 in | 2.4 m
Attachment weight: 2,422 lb | 1,099 kg
Bury cable fast and clean with the H832 Vibratory Plow—no mess, no slowdowns.
Cover depth: 36 in | 915 mm
Angle of departure (24-in blade): 25.3°
Angle of departure (30-in blade): 29.8°
Attachment length (no blade): 96.7 in | 2.46 m
Attachment weight: 2,230 lb | 1,012 kg
The ultimate multitasker—cut your setup time and boost productivity with a trencher and plow combo built for more.
Plow
Angle of departure (24-in blade): 25.3°
Angle of departure (30-in blade): 29.8°
Attachment length (no blade): 96.7 in | 2.5 m
Attachment weight (w/o boom, chain, or plow blade): 3,455 lb | 1,567 kg
Trencher
Angle of departure: 29°
Trench width: 6 - 12 in | 150 - 300 mm
Trench depth, max: 69 in | 1.76 m
Length (48-in boom): 92.5 in | 2.4 m
Height (48-in boom): 106 in | 2.7 m
Cut through asphalt and concrete with greater efficiency with the Heavy-Duty HydraWheel™ Rock Saw.
A powerful and efficient turbocharged Cummins® F3.8 diesel engine keeps the RT125 running strong all day long. It’s the go-to machine you’ll depend on.
Get the reach, strength, and control of a backhoe—right from your ride-on.
Transport height: 118 in | 2,997 mm
Ground clearance: 29 in | 736 mm
Digging depth, max: 112 in | 2,844 mm
Reach from swing pivot: 158 in | 4,013 mm
Bucket width: 12 - 24 in | 300 - 610 mm
Backhoe weight w/o bucket: 3,300 lb | 1,497 kg
Swing arc: 180°
Built to handle the toughest jobs, the Reel Carrier attachment keeps your workflow rolling.
Reel diameter, max: 96 in | 2,438 mm
Internal width: 54 in | 1,372 mm
Capacity: 2,500 lb | 1,134 kg
Engineered for serious trenching, the CT120H delivers consistent cutting performance.
Angle of departure: 23.7°
Trench depth: 97 in | 2,463 mm
Trench width: 24 in | 610 mm
Transport height: 124 in | 3,251 mm
Transport width: 115 in | 2,921 mm
Attachment weight: 1,750 lb | 794 kg
Engineered for serious trenching, the ST120H delivers consistent cutting performance.
Angle of departure: 24°
Trench depth: 94 in | 2,387.6 mm
Trench width: 24 in | 610 mm
Transport width: 126 in | 3,200 mm
Attachment weight: 2,350 lb | 1,066 kg
Bury cable fast and clean with the VP120H Vibratory Plow attachment—no mess, no slowdowns.
Angle of departure, no blade: 47.5°
Angle of departure, 24-in blade: 30°
Angle of departure, 30-in blade: 24°
Cover depth: 42 in | 1,067 mm
Attachment length lowered, no blade: 97 in | 2,464 mm
Attachment length raised, no blade: 78 in | 1,981 mm
Attachment weight w/o blade : 2,600 lb | 1,180 kg
The ultimate multitasker—cut your setup time and boost productivity with a trencher and plow combo built for more.
Plow
Angle of departure, no blade: 30°
Angle of departure, 24-in blade: 27°
Angle of departure, 30-in blade: 22°
Attachment length lowered, no blade: 103 in | 2,616 mm
Attachment length raised, no blade: 70 in | 1,778 mm
Cover depth: 36 in | 914 mm
Attachment weight w/o boom, chain, or blade: 3,065 lb | 1,390 kg
Trencher
Trench depth, max: 70 in | 1,780 mm
Trench width: 6 - 12 in | 150 - 300 mm
Transport length: 126 in | 3,200 mm
Transport height: 126 in | 3,200 mm
Angle of departure: 22°
Cut through asphalt and concrete with greater efficiency.
Powered by a turbocharged Cummins® F3.8 diesel engine and featuring a massive undercarriage and Quad Track System, the RT125 Quad is the ultimate trenching and plowing machine.
Get the reach, strength, and control of a backhoe—right from your ride-on.
Transport height: 118 in | 2,997 mm
Ground clearance: 29 in | 736 mm
Digging depth, max: 112 in | 2,844 mm
Reach from swing pivot: 158 in | 4,013 mm
Bucket width: 12 - 24 in | 300 - 610 mm
Backhoe weight w/o bucket: 3,300 lb | 1,497 kg
Swing arc: 180°
Built to handle the toughest jobs, the Reel Carrier attachment keeps your workflow rolling.
Reel diameter, max: 96 in | 2,438 mm
Internal width: 54 in | 1,372 mm
Capacity: 2,500 lb | 1,134 kg
Engineered for serious trenching, the CT120H delivers consistent cutting performance.
Angle of departure: 23.7°
Trench depth: 97 in | 2,463 mm
Trench width: 24 in | 610 mm
Transport height: 124 in | 3,251 mm
Transport width: 115 in | 2,921 mm
Attachment weight: 1,750 lb | 794 kg
Engineered for serious trenching, the ST120H delivers consistent cutting performance.
Angle of departure: 24°
Trench depth: 94 in | 2,387.6 mm
Trench width: 24 in | 610 mm
Transport width: 126 in | 3,200 mm
Attachment weight: 2,350 lb | 1,066 kg
Bury cable fast and clean with the VP120Q Vibratory Plow attachment—no mess, no slowdowns.
Angle of departure, no blade: 47.5°
Angle of departure, 24-in blade: 30°
Angle of departure, 30-in blade: 24°
Cover depth: 42 in | 1,067 mm
Attachment length lowered, no blade: 97 in | 2,464 mm
Attachment length raised, no blade: 78 in | 1,981 mm
Attachment weight w/o blade : 2,600 lb | 1,180 kg

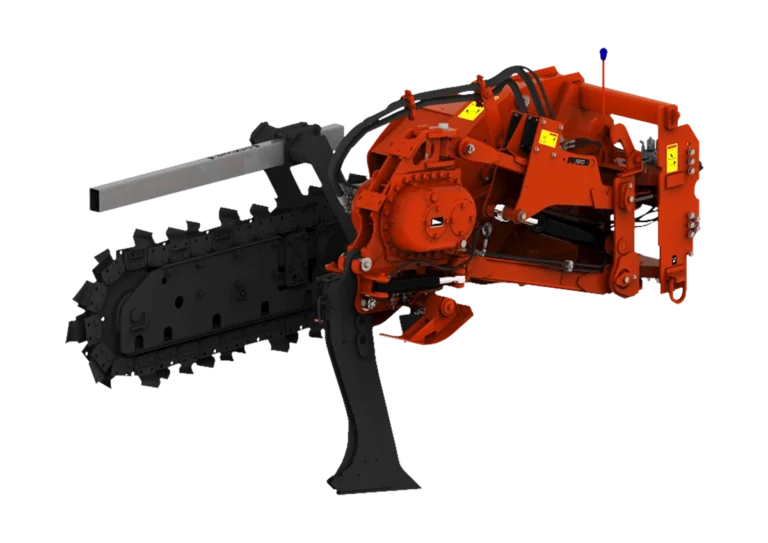

The ultimate multitasker—cut your setup time and boost productivity with a trencher and plow combo built for the RT125 Quad Ride-On Trencher.
Plow
Angle of departure, no blade: 47.5°
Angle of departure, 24-in blade: 30°
Angle of departure, 30-in blade: 24°
Attachment length lowered, no blade: 97 in | 2,464 mm
Attachment length raised, no blade: 78 in | 1,981 mm
Cover depth: 42 in | 1,067 mm
Attachment weight w/o boom, chain, or blade: 3,455 lb | 1,567 kg
Cut through asphalt and concrete with greater efficiency.
©2025 The Charles Machine Works, Inc.
SK600, SK800, SK900, SK1050, SK1550, SK1750
Best suited for irrigation and fiber installation, the Rock Saw attachment can effortlessly cut through rock, concrete, and other tough materials with unmatched precision.
SK1050, SK1550, SK1750
SK800, SK900, SK1050, SK1550, SK1750
Tackle tough cleanup jobs with confidence. Perfect for handling brush, limbs, debris, and more with speed and control. Its durable, open-frame design makes it easy to grab uneven loads.
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
The mini skid steer log grapple is built for tree service pros, with options that offer lift capacities up to 3,000 lbs. Save hours on your tree removal cleanups, this quick grab rake attachment is great for sweeping up stump chips, pine needles, rocks, and even snow!
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
From landscaping and hardscapes to tree care and construction-grade tasks, your stand-on skid steer can take on more than you think. We've got you covered with a variety of buckets from 4-in-1 to heavy and light material buckets. Widths range from 34" to 66".
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
Stay efficient on large jobsites with a trencher attachment for your skid steer. It’s a smart alternative to large, specialized equipment for utility installation and landscaping jobs. Available in standard 6”, 8” and 12” maximum widths with maximum depths of 36", 38", 48” and 55.5”.
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
