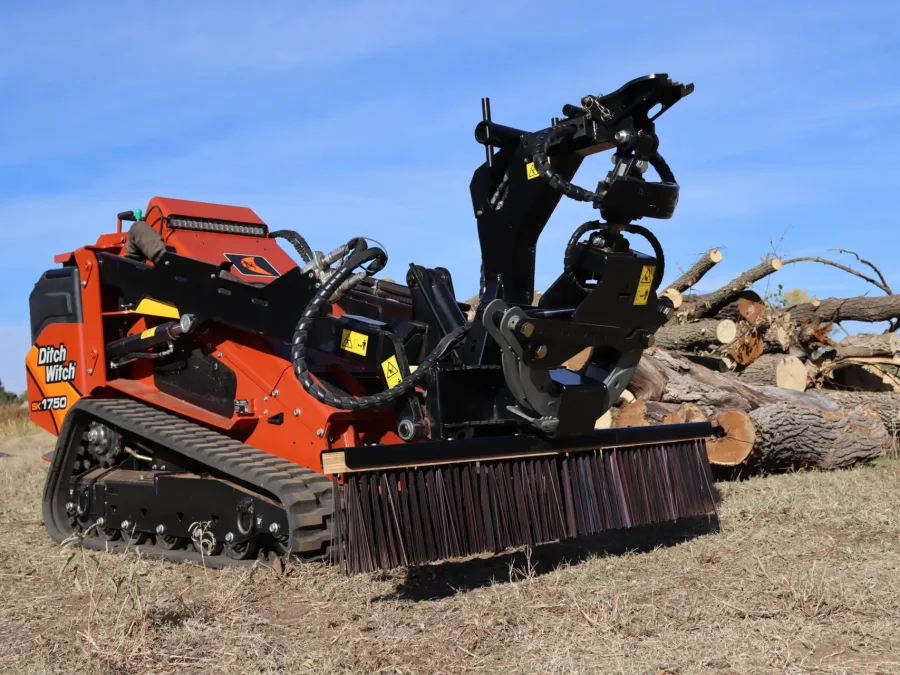

The next step in a line of dominant skid steers, the SK1750 sets a new standard in durability and operator convenience. With an all-new TriTrax System that features a patent-pending tension window, redesigned rollers, and an upgraded outer frame, this machine was made to stop downtime in its tracks.
The SK1750 mini skid steer is a powerhouse of performance, but with the right attachments, it becomes an unstoppable machine. Save time and labor with attachments designed to boost your skid steer’s output, so you can do more with less effort. Specifications are general and subject to change without notice.
Specifications
Trench depth, max: 48 in / 122 cm
Trench width: 4 – 8 in / 10 – 20 cm
Boom angle: 60°
Weight: 562 lb / 255 kg
Digging chain speed: 335 fpm / 102 m/min
Attachment width: 35 in / 89 cm
Attachment length: 78 in / 198 cm
Specifications
Trench depth, max: 2 – 12 in / 51 – 305 mm
Trench width: 0.5 – 1.5 in / 13 – 38 mm
Height: 46.2 in / 1.2 m
Length: 59 in / 1.5 m
Width: 59 in / 1.5 m
Weight, no blade: 1103 lb / 500 kg
Blade diameter: 34 in / 864 mm
Blade speed: 150 rpm
Specifications:
Height, standard plate: 33.25 in / 844.5 mm
Length: 24.75 in / 628.7 mm
Width: 51 in / 1.3 m
Weight, no blade: 813 lb / 368.8 kg
Plow vibrator: 16 gpm / 60.6 L/min
Plow-in depth, max: 24 in / 610 mm
Specifications:
Height: 43.25 in / 1.09 m
Length: 50.25 in / 1.27 m
Width: 34 in / 0.86 m
Weight: 682 – 709 lb / 309 – 321 kg
Blade diameter: 38 in / 0.96 m
Trench depth: 0 – 13 in / 0 – 330 mm
Trench width: 3 – 4 in / 76 – 101 mm
Blade speed: 0 – 275 rpm
Hydraulic flow: 12 – 17 gpm
Hydraulic pressure: 3500 psi (241 bar)
Specifications:
Spread: 1.5 – 39.5 in / 38.1 mm – 1 m
Height: 30 in / 762 mm
Length, fork: 48 in / 1.2 m
Width, frame: 48.75 in / 1.2 m
Width, fork: 3 in / 76.2 mm
Weight, no blade: 428lb / 194 kg
Capacity at 24″ from front edge of fork: 1900 lb / 862 kg
Capacity, max: 3800 lb / 1724 kg
Specifications:
Height: 18.5 in / 470 mm
Length: 44.5 in / 1.13 m
Width: 58.5 in / 1.48 m
Weight: 487 lb / 220.9 kg
Raking width: 48 in / 1.2 m
Roller angle, both directions: 30°
Solid tires: 11 x 4.00 – 5
Specifications:
Operating depth: 6 in / 152 mm
Height: 16 in / 406 mm
Length: 29 in / 737 mm
Width: 61.5 in / 1.6 m
Cutting width: 50 in / 1.3 m
Weight: 493 lb / 223 kg
Speed at 16 gpm: 260 rpm
Specifications:
Height: 17.75 in / 450 mm
Length: 17.5 in / 445 mm
Width: 60 in / 1.5 m
Weight: 329 lb / 149 kg
Specifications:
Width: 48 in / 1.22 m
Specifications:
Width: 52 in / 1.32 m
Specifications:
Width: 60 in / 1.5 m
Specifications:
Width: 66 in / 1.68 m
Specifications:
Height: 20 in / 508 mm
Length: 27.5 in / 698.5 mm
Width: 42.5 in / 1.1 m
Weight: 268 lb / 122 kg
Capacity: 5-ft³ / 0.14-m³
Pressure: 1500 – 3000 psi / 103 – 209 bar
Specifications:
Contact your local Ditch Witch dealer for more information.
Specifications:
Overall width: 67.25 in / 1.7 m
Blade width: 57.75 in / 1.5 m
Weight: 310 lb / 141 kg
Specifications:
Overall width: 46.75 in / 1.2 m
Blade width: 40 in / 1 m
Weight: 257 lb / 117 kg
Specifications:
Height: 23 in / 59 cm
Length: 16 in / 40 cm
Width: 24 in / 62 cm
Weight: 182 lb / 83 kg
Specifications:
Height: 16 in / 406 mm
Length: 36 in / 914 mm
Width: 49 in / 1.2 m
Weight: 170 lb / 77 kg
Specifications:
FRAME:
Height: 10 in / 25 cm
Length: 4 in / 10 cm
Width: 24 in / 61 cm
Weight: 40 lb / 18 kg
SCARIFIER TOOTH
Height: 11.7 in / 29.7 cm
Length: 13 in / 33 cm
Width: 2 in / 5.1 cm
Weight: 9 lb / 4.1 kg
Specifications:
Height: 29 in / 737 mm
Fork length: 48 in / 1219 mm
Spread: 3.7 – 38.5 in / 98 – 978 mm
Frame width: 41.3 in / 1049 mm
Fork width: 3 in / 76.2 mm
Weight: 295 lb / 134 kg
Capacity, max: 3000 lb / 1361 kg
Specifications:
Contact your local Ditch Witch dealer for more information.
Specifications:
Height: 21 in / 53 cm
Length: 51 in / 130 cm
Width: 51 in / 130 cm
Weight: 550 lb / 250 kg
Specifications:
Transport height: 71 in / 180 cm
Length: 41 in / 104 cm
Width: 34.5 in / 87.6 cm
Weight: 843 lb / 382 kg
Digging depth: 78 in / 198 cm
Bucket rotation: 180°
Swing arc: 180°
Stabilizer spread: 78 in / 198 cm
Bucket capacity: 0.7 ft³
Specifications:
Height: 13 in / 33 cm
Length: 51.2 in / 130 cm
Width: 24.8 in / 63 cm
Weight: 389 lb / 176 kg
Bit working length: 11.4 in / 29 cm
Bit diameter: 2 in / 5 cm
Impact energy class: 250-ft lb / 339 J
Impact rate: 600 – 1150 bpm
Flow change: 5.3 – 9.2 gal per min / 20 – 35 liter per min
Specifications:
Height: 10.1 in / 257 mm
Length: 21.5 in / 546 mm
Width: 36.5 in / 927 mm
Weight: 136 lb / 62 kg
Bore diameter: 1.75 – 12 in / 45 – 300 mm
Your go-to resource for the best training in the industry.
Turn one machine into a multi-functional workhorse with versatile Ditch Witch SK attachments.
Take advantage of latest offers and watch your business grow.
Easy access to all Ditch Witch service parts and manuals.
With more hydraulic power directed to attachments and a construction-grade design that eases operator maintenance and boosts comfort, the SK1050 mini skid steer improves versatility, productivity, and ROI.

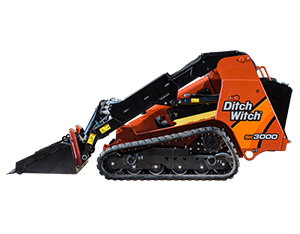

Leave the cage behind and trade it for unrivaled performance with the SK3000 Stand-On Skid Steer—a machine unlike any other. Uncage your productivity and upgrade to the SK3000.
©2025 The Charles Machine Works, Inc.
SK600, SK800, SK900, SK1050, SK1550, SK1750
Best suited for irrigation and fiber installation, the Rock Saw attachment can effortlessly cut through rock, concrete, and other tough materials with unmatched precision.
SK1050, SK1550, SK1750
SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750
From landscaping and hardscapes to tree care and construction-grade tasks, your stand-on skid steer can take on more than you think. We've got you covered with a variety of buckets from 4-in-1 to heavy and light material buckets. Widths range from 34" to 66".
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK1050, SK1550, SK1750, SK3000
SK600, SK800, SK900, SK1050, SK1550, SK1750
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
Stay efficient on large jobsites with a trencher attachment for your skid steer. It’s a smart alternative to large, specialized equipment for utility installation and landscaping jobs. Available in standard 6”, 8” and 12” maximum widths with maximum depths of 36", 38", 48” and 55.5”.
SK600, SK800, SK900, SK1050, SK1550, SK1750, SK3000
